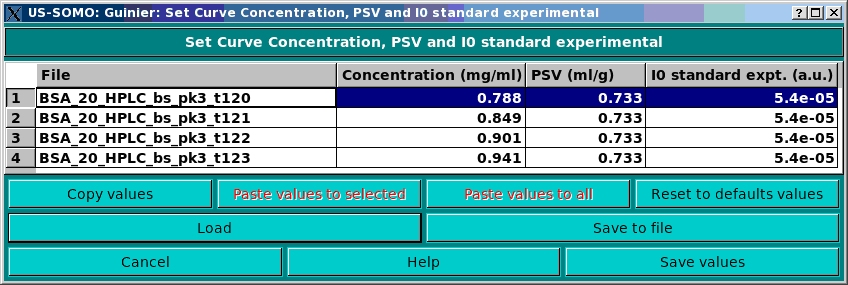

In this module the files names of the SAXS data currently uploaded in the SAS module will be listed in separate lines. In the three successive columns the concentration (mg/ml), partial specific volume (PSV, ml/g), and the standard experimental I(0) (I0 standard expt., a.u.) are reported or can be entered if absent. A number of utilities is present for copying selected values (Copy values), pasting to either selected (Paste value to selected) or to all (Paste value to all), or to Reset to default values. Current values can be saved to the SAXS data file(s) (Save to file). Load will allow to retrieve previously saved data. Cancel will interrupt the current operation and close the module, while Save values will accept the changes and close the module.
Note: when I*(q) files are either directly loaded in the SAS module or transferred from the HPLC/KIN module ("to SOMO/SAS" button), the c, PSV and I(0) values previously used to convert I(q) to I*(q) are reported but not used or editable. The same holds for I#(q) data, but since they were not normalized by the concentration, proper c values can be entered here.
